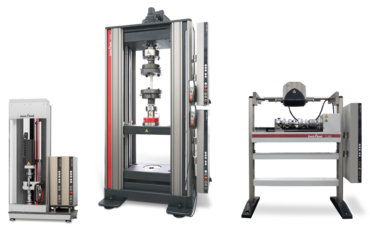

HCT and our HBT series electro-hydraulic servo fatigue testing machine is used forDetermination of reverse rotation, or used for tensile/torsion test.

The machine test of torsional actuator cylinder installed on the beam.The function of HC and HB series test of model is used in combination of tensile, compression and torsion load;Using T slot platform has the versatility.

We last element dynamic test of the product line is the production of all the necessary accessories, such as hydraulic power source, the electro-hydraulic servo test actuator cylinder or hydraulic distributor.Expanding our product line, through a continuous development and to join the plan of new products, enable us to meet customers' most stringent quality requirements, continuously improve product quality at the same time.

Advantages and characteristics of the

describe

Used in electro-hydraulic servo reverse rotationHCT seriesDesktop modelThe testing machineTest load kn from 10 to 25 kn.

Test the actuator cylinder stroke 100 mm
The torque of 250 Nm
Rotation Angle of 100 ° 280 ° (optional)

Used in electro-hydraulic servo reverse rotationOur HBT seriesBe born typeThe testing machineTest load of up to 250 kN.

Test the actuator cylinder stroke 100 mm
The torque of 1000 nm
Angle is 100 °
Application for more details

The advantage of HCT

Double column dynamic test design, test load up to 25 kn / 250 Nm
On the beam can be adjusted hydraulic and manual clamping
Test actuator cylinder for overhead structure
Proper load for 10 kN / 100 Nm and 250 Nm 25 kN/linear/rotating driver USES
The length of the torsional rigidity, no backlash compensation
Hydrostatic bearings, linear actuator cylinder without a shaft seal
Hard coating T cell test bench and pillar, is suitable for the need to test of corrosive media
Comply with the different applications of CE machinery safety protection device
Optional: used for tensile/compression - torsion test of hydraulic wedge clamp

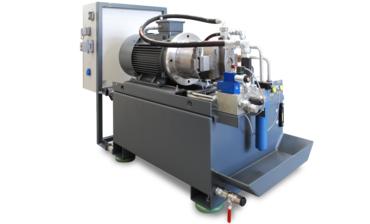

Hydraulic power source 40 l/min, no noise protection device

Hydraulic power supply

HP series the characteristics of the power supply reliability is high, long service life.All components are installed on the top of the tank, easy to take place.

Self-priming radial piston pump driven by asynchronous motor.Nine piston contact with stroke ring in hydrostatic equilibrium state.Loop flow rate by the stroke eccentricity control, eccentricity, each other through two relative to the control of the piston.Pressurized oil flow by high pressure filter, and then for the use of equipment.Factory Settings of the pressure relief valve can prevent the excessive pressure rise.

Electro-hydraulic servo actuator cylinder test

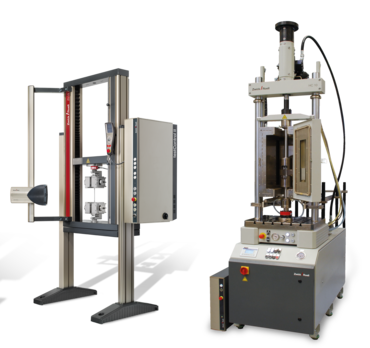

ZwickRoell electro-hydraulic servo test actuator cylinder using robust structure, can be used for the electro-hydraulic servo fatigue machine, also can be used as a uniaxial test for moving cylinders, such as on the plate.When used with servo valves, even complex load order, implement will become very high precision.

Hydraulic distributor

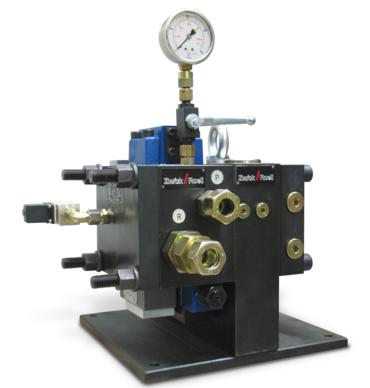

Hydraulic splitter is electro-hydraulic servo fatigue machine, electric switch device, used to connect or disconnect the electro-hydraulic servo test actuator cylinder hydraulic or electro-hydraulic servo fatigue machine.Each power element distribution have a connection valve, thus it can be independent of each other.Modular design can be added as required additional switching manifold.

An overview of the technology

Height of the test area	standard	Extension 250 mm	Extension 500 mm
The dynamic test force	25			kN
a._G100The biggest height - rack	2310	2560	2810	mm
a._K.- used to install the size of the tilt	1750	1995	2240	mm
B - maximum width of frame	660	660	660	mm
The maximum depth of C - stand	500	500	500	mm
D1 - the distance between the columns	460	460	460	mm
E - column diameter	65	65	65	mm
F - on the edge of the beam height	215	215	215	mm
G - maximum altitude test area¹	1000	1250	1500	mm
Maximum height H - work test area²	910	1160	1410	mm
J - beam displacement range	600	600	600	mm
Weight of K -³	435	450	465	kg
Frame stiffness of beam positioning at 1000 mm	300	300	300	KN/mm
T slot fitting size	Conform to DIN 508 M10 x 12, the spacing of 80 mm Ø 70 mm, 6 x M8 (only 6 bolts) as well M8 Ø 115 mm, 4 x
Clamping/adjust: manual/hydraulic	935275⁴	936110⁴	936259⁴
Dynamic nominal force		25	25

The distance between beams and beams under
The piston flange and the distance between beams under the, including the piston out of parts
Containing actuator cylinder weight
Required safety, solid base;Recommended base 935284

Do you have any questions about our products?

Please feel free to contact our product specialist.
We are looking forward to your requirements are discussed.
