Rockwell hardness tester
ZwickRoellRockwell hardness testerUsed in the classical rockwell method, metal surface rockwell method, such as plastic ball indentation test method of depth measurement.

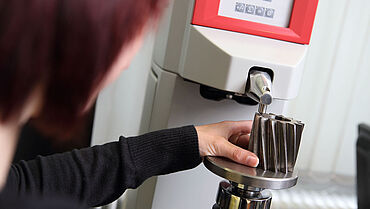

With the help ofRockwell hardness tester, poor available depth measuring pressure head produced by the residual indentation depth.Under the specified test load, the pressure head through the deeper the sample surface, measured material more soft.The most widely usedRockwell hardness test methodIs in compliance with ASTM E18 and ISO 6508 standard metal standardized test method.In the plastic industry, these includeUp to the standard of ISO 2039-2 and ASTM D785 rockwell hardness test, as well asUp to the standard of ISO 2039-1 ball indentation hardness test.
Stationary rockwell hardness testerPortable rockwell hardness testerTest method for
What is the difference between rockwell hardness tester?
rockwellHardness tester is designed for the use of differential method, the hardness of the material was tested.

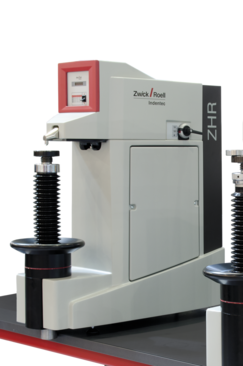

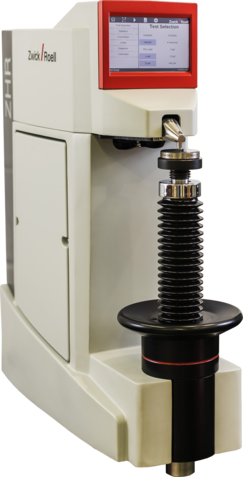

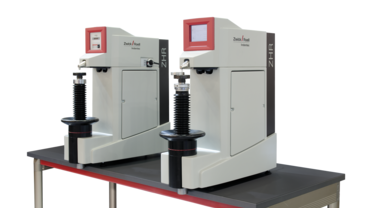

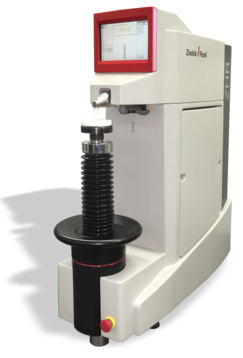

Typical of rockwell hardness testing machine by the load function, pressure head and test head and measurement sensors.DuraJet,ZHR touch screenandZHR8150CLModel is a software control type hardness testing machine, has automatic closed-loop load applied and fully automatic indentation evaluation function.ZHRInstruments used farmar system operation.
Using the software control instrument, you can visit a lot of features, including the use of templates, export the result and so on.
Rockwell hardness testThere are a number of applications.It is not only used for material properties, according to the determination of hardness and molding process is also used in the production and purchase department rapid and effective test.This helps to ensure the materials meet the requirements, and exert the best performance when used for its intended application.
In ZwickRoellRockwell hardness testerResearch and development process, we especially considering the following aspects:
- High precision and durability
- Operation is simple and intuitive, in order to minimize error
- Meet the future needs of test software
Rockwell hardness tester how to work?
Rockwell hardness tester using conical diamond formation of indentation on the material under test.After completion of pre load applied, accurate exert main load according to the specified time range.Then, remove the main load, then measuring the depth of the cone penetration material difference and calculate the hardness value.
Portable rockwell hardness tester is applicable to metal
ourPortable rockwell hardness testerLoad range from 15 to 187.5 kg, is 65 years experience in the crystal.For decades, they have been proved in many fields of industry's own power.
- The core component of every portable rockwell hardness tester is used for reliable spring sleeve device applied load.
- Hardness value is displayed in the simulation on the dial gauge.
- A wide range of application, the portable hardness tester from simple sheet metal measurement to tooth surface and the hardness test of drilling cover one by one.
Portable rockwell hardness tester model comparison
 |
 |
 |
|||||
| N4A | N4B | N4C | N4E | N6 | N7F | N7P | |
| Load range | 15-187.5 kg | 15-187.5 kg | 15-187.5 kg | 15-187.5 kg | 62.5 kg | 62.5 kg | 62.5 kg |
| display | simulation | simulation | simulation | simulation | simulation | manual | manual |
| Device type | The test fixture | The test fixture | The test fixture | The test fixture | Drilling hardness tester | Tooth surface hardness tester | Tooth surface hardness tester |
| Test area | The throat depth: 85 mm, clamping width: 0-145 - mm | The throat depth: 130 mm, clamping width: 0-235 - mm | The throat depth: 180 mm, clamping width: 0-335 - mm | The throat depth: 110 mm, clamping width: 0 to 20 mm | The hole diameter is 36-110 - mm, inserted depth of 400 mm | Outer profile module 2-10, measurement range up to 140 mm | Outer profile module 3-35, measurement range up to 700 mm |

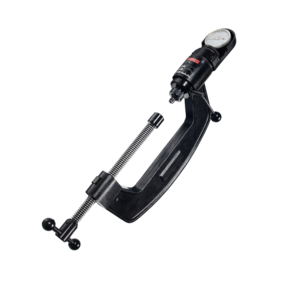

N4 interchange test fixture
Portable rockwell hardness testerWith a clamping device, the device consists of a light alloy and can quickly adjust screw spindle clamping clip and clamping of toggle.According to customer's requirement, you can choose a spring sleeve N1A 001 test device, also can choose one of the load adjustable test apparatus.
Application:
- Up to the standard of EN ISO 6508 and ASTM E18 all rockwell hardness method
- Brinell our HBT non-standard methods, load range of 294-1839 N (30-187.5 - kg)
Type:
- N4A clamping width 0 000 throat depth 85 mm - 145 mm
- N4B clamping width 0 000 throat depth 130 mm - 235 mm
- N4C clamping width 0 000 throat depth 180 mm - 335 mm
- N4E 000 throat depth 110 mm clamping width 0 to 20 mm
Adjustable load test device:(bearing capacity to reduce the 55 mm)
- N1P 000 - suitable for according to EN ISO 2039-1 (5, 13.5, 36.5, 98 kg) standard plastic experiment was carried out
- N1R 000 - suitable for according to EN ISO 6508 (60, 100, 150 kg) standard rockwell experiment was carried out
- N1S 000 - suitable for according to EN ISO 6508 (15, 30, 45 kg) standard super rockwell experiment was carried out
The test process:
- Test instrument on workpieces, and clamping force fit way between test apparatus and test head expectations of sites.
- The clamping process, applying load test using the handle.
- Then read the test result from the dial gauge.

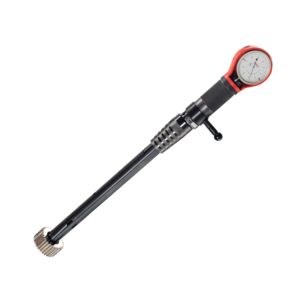

N6 - drilling hardness test
A full set of equipment includes the following items: test with load control rod device N1E 000 (equipped with dial gauge,
Dial indicator sleeve cover and spring), and with a nut and clamping clip and spring connecting rod Intest sensors, including sample.Delivery of the goods, the hardness tester is placed in a suitable instrument box, with hardness, comparison and instructions.
Application:
- Portable hardness tester is used for drilling
- The hole diameter from 36-110 - mm
The test process:
- Test instrument is positioned in the hole, and cooperate with fixed clamping way by force.
- The clamping process, applying load test using the handle.
- Then read from the dial gauge HRC value test results.
N7 - tooth surface hardness tester
Tooth surface hardness tester consists of the following items: test with load control rod device N1E 000 (equipped with a dial indicator, dial gauge cover and spring sleeve), with built-in spring connecting rod of measuring head, including the hardness test of diamond and clamping device.Standard design includes load control rod, 62.5 HRC hardness value indicator, kit, hardness, comparison, equipment shell and use manual.
Application:
- Used for tooth surface hardness measurement of the portable hardness tester.
Type:
- N7F 000 application: tooth module 2-10, maximum width of tooth surface measuring 140 mm
- N7P 000 application: tooth module 3-35, maximum width of tooth surface measuring 700 mm
The test process:
- Test apparatus on workpieces, and clamping the expected sites.
- The clamping process, applying load test using the handle.
- Then read the test result from the dial gauge.
