For Pellini experiment of drop hammer impact testing machine

download
industry
  • metal
The biggest energy
  • 1650 joules
Test type
  • Drop weight impact test (Pellini)
Test standard
  • ASTM E208
  • SEP 1325

W.S. lining drop weight impact test

As described in the drop weight impact test was used to study the lining, brittle fracture trend of iron and steel materials, used to evaluate the anti-crack behavior, according to the standard ASTM E208 and SEP 1325.

In the process of lining, test, drop hammer impact to the top of the orthogonal bending specimen, and are fixed on both ends of the specimen, within a given total bending deformation, cause the sample by the tensile side of brittle fracture.Brittle fracture began with a gap in the welding joints, the crack point.

Lining during the test, the need to make sure that caused by artificial crack point of brittle crack is on either side of the extension to the sample or suppressed.If on either side of the crack extension to the sample, the sample is considered to have damaged.

Advantages and characteristics

Advantages and characteristics

advantage
The characteristics of

advantage

  • Two types of modular test system
  • Can replace the jig
  • Exit on the safety of the circuit only when all safety contact contact allowed to experiment
  • Test space and independent pneumatic interlocking device, to ensure safety
  • Touch screen operation, screen display including the drop height, impact energy, impact hammer quality as well as the theory of velocity
  • Drop height can be stepless regulation, and will automatically after input the hammerhead quality and impact energy option
  • No additional installed base, the ground bearing requirements: 0.3 kg/cm squared

The characteristics of

  • Pellini drop weight impact test enginery, 550 J and 1650 J of two models.
  • The biggest drop height of 1 m or 1.3 m
  • According to the corresponding standard (ASTM E208 and SEP 1325), the impact energy available weight farmar for implementation.Impact energy will automatically be calculated.

An overview of the technology

Do you have any questions about our products?

Please feel free to contact our product specialist.
We are looking forward to your requirements are discussed.

Contact us

Related products and accessories

The application of interest

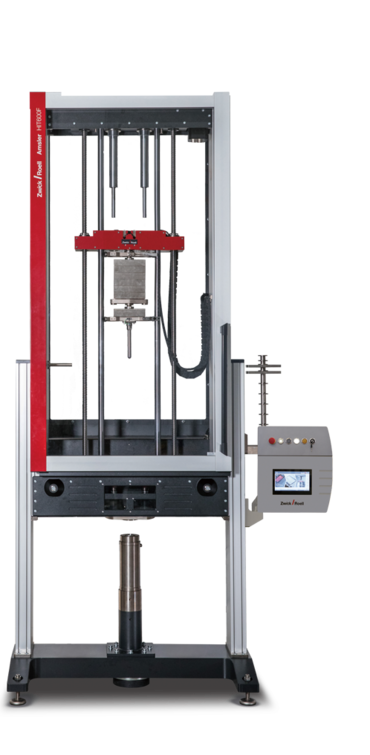

Drop weight impact test
Drop weight impact test is a mechanics test, which regulates the hammer from specified height on the sample.
To drop weight impact test
Metal drop weight impact test
According to DIN EN 10274 and API 5 l of drop hammer impact test is a mechanical test of metal, which regulates the hammer from specified height on the sample.
To metal drop weight impact test

download

The name type size download
  • Product information: 550 and 1650 J impact energy Pellini drop hammer impact test machinePDF451 KB
