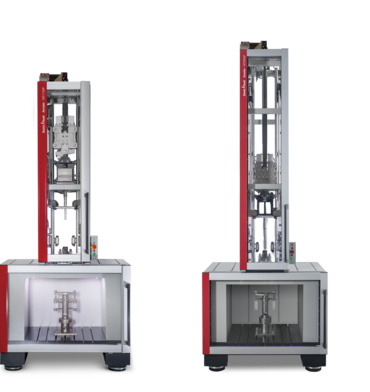

Amsler - series - hit230f - hit230f - CAI - hit600f hit1100f - hit2000f xsl-fo

industry

Plastic material testing

The biggest energy

650 joules

Test type

The piercing
Simply supported beam
A cantilever beam
Impact tensile

Work closely with the customer

ZwickRoell has for several years with high quality impact tester system.Based on existing experience, ZwickRoell has successfully developed a series of new type of drop hammer impact test machine, and named after Amsler.

In low temperature and under high speed loading, plastic become more brittle.Therefore, the plastic strength of temperature effect and loading rate sensitivity has been concern and research.

Amsler HIT230F and HIT600F drop hammer impact testing machine, mainly used for plastic impact test, the optimization of the test installation and replacement of the space design makes temperature environment sample is more convenient and efficient.

Amsler HIT600F universal drop hammer impact test machine
Amsler HIT230F and Amsler HIT230F rushed after pressure test: small drop hammer impact testing machine is used for perforation test

Amsler HIT drop hammer impact test machine

Used in multi-axis puncture test Amsler HIT230F breaker

Amsler HIT600F multi-axis impact test

Amsler HIT drop hammer impact test machine

Amsler HIT 600 f application range

Plastic penetration test, according to the standard ISO 6603-2 and ASTM D3763
Based on a variety of industry standard plastic accelerate penetration test
According to ISO 7765-2 membrane penetration test
According to ASTM D7136, DIN EN 6038 and 1.0010 AITM, Boeing 7260, BSS SACMA SRM 2 r - 94, DIN 65561 of fiber reinforced composites (CAI) for damage
According to ISO 179-2, ASTM D6110 and ISO 180 and ASTM D256 for simply supported beam and cantilever beam impact test

Amsler HIT230F application range

Amsler HIT230F is an ideal for polymer multi-axis impact perforation test equipment.Applications include through material characterization of research and development and quality control.

At room temperature and under high and low temperature environment, according to the standard ISO 6603-2, ASTM D3763 multi-axis punching test.

HIT230F CAI application range

Amsler HIT230F is for composite compression after impact (CAI) test ideal equipment in the process of the impact damage, this method is widely used in aviation industry.

Compression after impact test for fiber reinforced composites by impact test need to meet the following criteria: Airbus AITM 1-0010, Boeing 7260, ISO 18352, DIN 65561, ASTM D7136, DIN EN 6038

Reliable test results

A high natural frequency to ensure the accuracy of test results.
All test channel of high data acquisition rate 4 MHZ to ensure the test curves have the best resolution.
Both for brittle or ductile materials, the larger cache space ensures that every detail of the test data are stored.

Ergonomic design and efficient

Highly optimized test space, carry out the test sequence.
No installation temperature box, easily implement sample manual sample at low temperature.
Safety devices need to manually open the test area.
TestXpert III sequences of automation of software testing model can realize multiple uninterrupted test sample.
The punch automatic lubrication.

Sample test temperature environment

Under the low temperature impact strength is one of the key mechanics performance of the material parameters.If you need sample for cooling, ZwickRoell against Amsler HIT230F and Amsler HIT600F incubator is designed

For low temperature test sample, sample need to first in the incubator.

Multiple samples are placed in the incubator, then continuously to provide sample to drop weight impact test, HuanYang interval can be controlled in 5 seconds.

Compared with the installation of the oven, the efficiency of this method is significantly increased thermal insulation sample packs can be easily removed, and used for cooling other sample.

Intuitive humanistic touch screen operation

All relevant test parameter and high level system Settings.Step by step wizard guides the user to complete the test set.
Drop hammer impact testing machine and software of the test and data processing to achieve the optimal coordination.
Devices directly show the test curve, thereby saving the damage types to choose the required time.

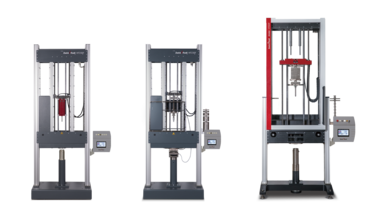

Amsler HIT drop hammer impact testing machine series

An overview of the technology

model	Amsler HIT600F drop hammer impact test machine
The order no.	1050436
Potential energy, without acceleration unit, is the largest	550	The joule
Potential energy, has accelerated units, is the largest	670	The joule
size
highly	2987	mm
Width, including operating unit and a single farmar bracket	1370	mm
Total width, the door opened	2120	mm
The depth of the	800	mm
Drop height, depending on the test equipment, is the largest	1400	mm
Drop height, depending on the test equipment, the smallest	50	mm
The largest falling weight	40	kg
The minimum falling weight	2.04	kg
Impact acceleration, depends on the test equipment, is the largest	5	M/s, 1.4 m drop height
Impact acceleration, depends on the test equipment, the smallest	1	M/s
A strength signal resolution	16	position
Test frequency (strength), is the largest	4	MHz
Equipped with the weight of the commonly used the attachment is about	1020	kg
Additional dynamic maximum load, no acceleration	22.9	kN
Additional dynamic maximum load, acceleration	28	kN
Load on the ground:	10.4	KN/m squared
The bottom level of local load	40.5	N/cm squared
The power input specification
Power plug	CEE 7 (ground)
The power supply	230	V, 1 ph/N/PE
Maximum current consumption	14.8	a.
Full of power, about	3.4	kVA
Power frequency	50/60	Hz
The compressed air
pressure	5.5...8	The bar
Pressure of work	5...8	The bar
Every time the measuring need compressed gas	2	l
The required gas output frequency	600	L/min
Compressed gas joint	TL 7
Maintenance of equipment	Fixed on the equipment

model	Amsler HIT230F drop hammer impact test machine
The order no.	1044068
The potential energy	230	The joule
size
highly	2600	mm
The width of the	1000	mm
The depth of the	600	mm
Drop height, is the largest	1000	mm
Drop height, minimum	110	mm
	23.3	kg
Impact acceleration, is the largest	4.4	M/s and 1 m drop height
A strength signal resolution	16	position
Test frequency (strength), is the largest	4	MHz
Clamping force	6...9	kN
The weight,	400	kg
The ground bearing (through testing machine frame surface applied)	20	KN/m squared
The bottom level of local load	200	N/cm squared
In v_MaxConditions, the measured at 1 m distance from the machine front average noise level	60	DB (A)
The power input specification
The power supply	100...240	V
phase	1 ph/N/E
Allow the voltage fluctuation	Plus or minus 10	%
Full of power, about	0.5	kVA
Power frequency	50/60	Hz
The compressed air
pressure	5.5...8	The bar
Pressure of work	5...8	The bar
Every time the measuring need compressed gas	2	l
The required gas output frequency	600	L/min
Compressed gas joint	TL 7
Maintenance of equipment	Fixed on the equipment

Basic version of the technology parameters

model	Amsler HIT230F drop hammer impact test machine
The order no.	1044081
The potential energy	100	The joule
size
highly	2600	mm
The width of the	1000	mm
Equipped with a single farmar the width of the tray	1235	mm
The depth of the	695	mm
Drop height, is the largest	1000	mm
Drop height, minimum	110	mm
The largest falling weight	10.2	kg
The minimum falling weight	2.04	kg
Impact acceleration, is the largest	4.4	M/s and 1 m drop height
A strength signal resolution	16	position
Test frequency (strength), is the largest	4	MHz
Clamping force	manual
The weight,	400	kg
Load on the ground:	20	KN/m squared
The bottom level of local load	200	N/cm squared
In v_MaxConditions, the measured at 1 m distance from the machine front average noise level	60	DB (A)
The power input specification
The power supply	100...240	V
phase	1 ph/N/E
Allow the voltage fluctuation	Plus or minus 10	%
Full of power, about	0.5	kVA
Power frequency	50/60	Hz
The compressed air
pressure	5.5...8	The bar
Pressure of work	5...8	The bar
Every time the measuring need compressed gas	2	l
The required gas output frequency	600	L/min
Compressed gas joint	TL 7
Maintenance of equipment	Fixed on the equipment
