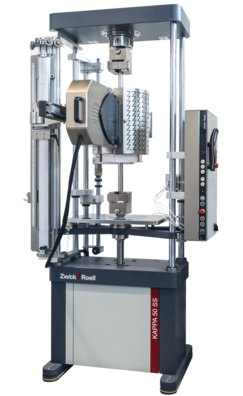

Kappa SS

When used to test 10000 hours of mechanical and electronic creep testing machine download
Test load
  • 50-100 kN
Temperature range
  • - 80 to + 2000 ° C
Test type
  • creep
  • The stress relaxation
  • SSRT, HE
  • CCG
  • The tensile
  • The compression
  • bending
Test standard
  • The ISO 204
  • ASTM E139
  • EN 2002-005
  • ASTM E1457
  • ASTM G129
  • ASTM F519

The creep testing machine satisfies the requirement of accurate axial of the highest

Kappa SS creep testing machine equipped with a central screw, suitable for classical creep test and need to the most precise control and axial load of the advanced creep test.

Kappa SS mechanical creep testing machine is widely applied in the environment temperature and high temperature conditions:

  • Advanced creep test
    - within the scope of tensile fatigue test
    And strain model (for example, in the determination of creep curves under different load)
    - creep ductility
    - creep under low strain rate test (SSRT)
    - creep of component test data
  • Crack growth and expanding experiments
  • Determination of hydrogen embrittlement
  • Test force and temperature regulation test
  • Relaxation test
  • Creep test until the fracture
  • - creep failure
    Stress failure -
  • Classical creep test
  • The machine also can be short-term tensile, compression and bending test

Advantages and characteristics of the

Advantages and characteristics of the

Special testing machine design
In a axial
Accurate sample temperature
Intelligent electronic control system and software
The best stretch
A variety of test accessories
For future changes in technology is ready

Special testing machine design

  • Machine frame is equipped with central screw driver, and through the four steel column accurately oriented to provide accurate axial load
  • The central screw can realize accurate axial
  • Drive control frequency is high, up to 1000 Hz.So that it can accurately control force and the strain of various kinds of applications.
  • In order to optimize the control performance using load and high resolution displacement measurement, especially at very low speed test.
  • Loading rate accurately, in 1 mu m/h to the measuring range of the rated speed, and not apply under the condition of constant load, loading or tolerance for the set speed of plus or minus 0.1%
  • Force measuring scope broad, applies to 0.5 according to DIN EN ISO 7500-1 and 1 each test standard, test force big or small
  • In accordance with DIN EN ISO 7500-1 precision testing machine

In a axial

  • The central screw can realize accurate axial, accord with the standard ASTM E292
  • Load chain has the best alignment, accord with the standard ASTM E1012
  • Spherical fixture to ensure the automatic adjustment of the in the tensile test, at the same time, the bending stress is low, and conform to the standard (+ / - 10%)

Accurate sample temperature

  • High temperature furnace, environmental test chamber or induction heating system - depending on the type of test to choose the required test temperature
  • One, two, or three sample thermocouple - depends on the sample length
  • Thermocouple and furnace with the center of the sample automatic entrainment - took place in larger elongation and test duration longer cases
  • Does not depend on the temperature control of the operator function, can automatically adjust the control parameters to adapt to the influence factors, such as
    - heating rate and the target temperature
    - sample size, material and shape
    - the number of thermocouples
  • Make sure the temperature along the sample uniform distribution
  • Reach the target temperature,There is noThe sample temperature overshoot
  • No longerNeed to determine the temperature of the control parameters according to the experience
  • Temperature range is wide, tolerance is higher than the ISO 204 and ASTM standard E139:
    200 ° C to 400 ° C: plus or minus 2 K
    400 ° C to 1150 ° C: plus or minus 1 K

Intelligent electronic control system and software

  • The working process in the same direction, thus the training needs to a minimum
  • When the applied load strain and force control (stepless/block)
  • Can choose the digital closed-loop control creep test load, stress and strain and the stress relaxation test, as well as user defined loading cycle
  • In the test performance evaluation process is easy to operation and test result
  • Integrated temperature control, namely high temperature controller
  • Before the test phase (heating) to control the temperature, recording and exegesis
  • Data security concept design is perfect

The best stretch

To obtain reliable strain measurement, should with extensometer test application to achieve the best matching effect.Therefore, choosing the appropriate extension project is essential, it is also the basis of test results can be repeated.ZwickRoell工程师可帮助用户选择合适的引伸计,无需靠猜测来决定是使用光学引伸计还是接触式引伸计:

  • Non-contact stretchvideoXtens
  • Lateral connection contact amplify meter:
    - makroXtens with high temperature sensor
    - side stretch into the type
  • The axial connection contact amplify meter:
    - the telescopic extension project
    - 4 stem extension
  • DCPD amplify meter for measuring crack growth

For further details, please clickhere.

A variety of test accessories

There are many kinds of machinery accessories to choose from, so widely used, allowing the environment temperature, under high temperature and ultra high temperature using the same testing machine for test.

  • With different size and slot of the melting pot
  • Temperature, vacuum and inert gas chamber
  • Induction heating system
  • Sample clamp and loading chain
  • Contact type and non-contact pilot project
  • Security fence
  • Hot chamber solution

For future changes in technology is ready

Modular design means that the test system could be transformed as needed or upgraded.In addition, the testControl II electronic measurement control system will be compatible with the new version ZwickRoell software.

An overview of the technology

We will creep test for your application to find the best solution.Please feel free to contact us.

We are looking forward to your requirements are discussed.
